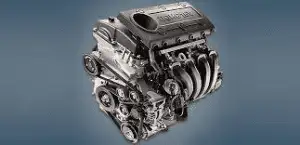

In-Depth Description of the Hyundai G4KE 2.4L Engine: Specifications, Uses, and Performance Features

Hyundai G4KE 2.4L is one of the highly acclaimed members of the Hyundai Theta II engine family that is both efficient and extremely high-performance. The inline-four gasoline engine is a staple in the majority of Hyundai and Kia vehicles and has the best power, reliability, and mileage combination.

Engine Specifications

The G4KE engine also possesses a capacity of 2.4 liters, achieved through a bore diameter of 88 mm and stroke of 97 mm. The configuration provides it with a compression ratio of 10.5:1, allowing for the most efficient burning of the fuel to produce maximum power and efficiency. It incorporates a Dual Overhead Camshaft (DOHC) that contains 16 valves to efficiently handle the intake and exhaust process.

Fuel injection is managed by Multi-Point Fuel Injection (MPFI), which provides better fuel efficiency and reduced emission. It is powered by 95+ RON gasoline and complies with Euro 4 and Euro 5 environment-oriented specifications. Oil capacity is 4.6 liters with suggested viscosities of 0W-40, 5W-30, and 5W-40. Regular oil change is recommended at every 7,500 to 15,000 kilometers for smooth engine operation.

Hyundai and Kia Model Applications

Since its launch in 2009, the G4KE engine has been used in a series of Hyundai and Kia models, primarily mid-size sedans and SUVs. Some of the most significant uses are:

Hyundai Models:

Hyundai Sonata (2007–2019)
Hyundai Santa Fe (2010–2020)
Hyundai Tucson/ix35 (2010–2020)
Hyundai Azera (2013–2016)
Hyundai Grandeur (2008–2011)

Kia Models:

Kia Sorento (2009–2012)
Kia Sportage (2010–2019)
Kia Cadenza (2009–2019)

These vehicles take advantage of the power-efficiency compromise of the G4KE engine, hence making it a driver’s option for those who yearn for reliable performance from their vehicle.

⚙️ Performance and Durability

The G4KE engine produces 174 to 175 horsepower (128–129 kW) and 225 to 226 Nm torque. Its power is derived from its superior engineering, wherein it utilizes a robust crankshaft and high-strength material that makes it efficient and long-lasting. The engine itself is built to be dependable, wherein most of the units will have over 200,000 kilometers lifespan as long as it is serviced properly.

But as with every engine, the G4KE does too have its weaknesses. Oil burn and timing chain longevity have been cited as problems, particularly in high-mileage engines. Maintenance to avoid these problems in the form of oil change and timing chain inspection is the key to sustaining the life of the engine and having it run at its top.

Maintenance Tips

For the best performance and life of the G4KE engine, embrace these maintenance habits:

Regular Oil Changes: Use the recommended oil grades (0W-40, 5W-30, or 5W-40) and change the oil between 7,500 to 15,000 kilometers.
Timing Chain Inspection: Inspect the timing chain for wear, especially if the vehicle has high mileage.
Coolant System Maintenance: Ensure the cooling system is in good condition to keep the engine operating temperature around 90°C.
Air and Fuel Filters: Periodically change air and fuel filters to provide the best fuel economy and engine breathing.
Spark Plugs: Inspect and replace spark plugs as needed to provide good combustion.

By following these maintenance cycles, it will help achieve the highest life and performance of the engine.

Tuning and Performance Upgrades

For tuners who want to enhance the performance of the G4KE engine, some of the below are achievable modifications:

Exhaust System: Upgrading to a 4-2-1 exhaust manifold and straight-through exhaust will improve exhaust flow, providing horsepower.
Engine Control Unit (ECU) Tuning: Renovation of the ECU can improve fuel and ignition maps to provide higher performance.
Cold Air Intake: Replacement of the cold air intake system can improve volume of air pulled in and reduce intake temperature, improving the efficiency of the engine.

Though such modifications will enhance performance, care should be taken not to allow them to compromise the reliability or life of the engine.

Summary

The Hyundai G4KE 2.4L engine is excellent for its balance of power, fuel efficiency, and reliability. The fact that it has run so many varied Hyundai and Kia models speaks well of how good and reliable it is. The G4KE engine, provided with the best care and attention, will function well for numerous years without suffering from any kind of issue and is therefore a great choice for anyone in the market for a reliable engine for a car.

FAQs

Q1: How frequently is the oil changed in the G4KE engine?

A1: Every 7,500 to 15,000 kilometers of use change of oil is recommended depending on conditions and oil type.

Q2: Which Hyundai and Kia models have the G4KE engine installed?

A2: The G4KE engine is installed in a variety of Hyundai and Kia models including the Hyundai Sonata, Santa Fe, Tucson/ix35, and Kia Sorento, Sportage, and Cadenza.
