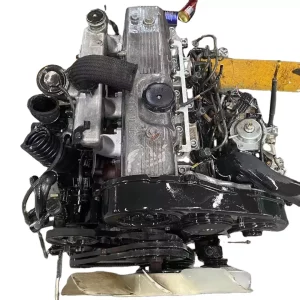

Mitsubishi 4d56 turbo engine diesel engine has been the backbone of Mitsubishi models since its introduction in 1986. Its toughness, versatility, and capability have won widespread acceptance, and it powered an incredible lineup of cars from off-road warfare ships to modest commercial delivery trucks. This is a comprehensive reference guide that comprises the specification, applications, benefits, and drawbacks of the engine, with useful facts that can be useful for enthusiasts as well as prospective customers.

Overview of the 4D56 Turbo Engine

The 4d56 turbo engine is a 2.5 liter displacement turbocharged inline four-cylinder diesel engine. Over its three decades of existence, it has seen many variations, including the addition of intercooling and variable geometry turbochargers (VGT) for better performance and efficiency. Its ruggedness and versatility have won it a place in the hearts of several markets worldwide.

Technical Specifications

Engine Configuration:

Type: Inline 4-cylinder, turbocharged diesel
Displacement: 2,477 cc (2.5 liters)
Bore x Stroke: 91.1 mm x 95 mm
Compression Ratio: Between 16.5:1 and 21.0:1, depending on version
Valvetrain: SOHC or DOHC with 8 or 16 valves
Fuel System: Originally had indirect injection (IDI), later models have common rail direct injection (CRDI)
Turbocharging: Yes, with intercoolers and VGT in some versions
Power Output: Between 74 hp and 178 hp, depending on model and specification
Torque Output: 142 Nm – 400 Nm
Compliance with emissions: Euro 2 to Euro 5 emission-compliant based on model year and market
Weight of Engine: Approximately 193 kg
Oil Capacity: 6.5 liters
Recommended Oil Viscosity: 5W-30 or 5W-40
Estimated Lifetime: Up to 400,000 km based on regular maintenance

Applications of the 4D56 Turbo Engine

The 4D56 turbo engine has been utilized in a series of Mitsubishi models, among others. Some of the most notable applications are:

Mitsubishi Pajero/Montero: Luxury SUV for off-road performance.
Mitsubishi L200/Triton: Heavy-duty pick-up truck widely used to commercial as well as personal applications.
Mitsubishi Delica: Minibus/van that is very versatile and very utilized on the Asian continent.
Mitsubishi Adventure: Family and utilitarian MPV.
Hyundai Models: Hyundai D4BA, D4BF, and D4BH engines, utilized in some of the Hyundai range, were developed from the 4D56.

Performance and Road Behavior of 4d56 turbo engine

The 4D56 turbo engine provides power and fuel economy balance in various driving conditions:

Power Delivery: Turbo technology provides excellent low-end torque, perfect for towing and off-road use.
Fuel Economy: Fuel economy is from 8.5 L/100 km highway, varying on condition and vehicle.
Emissions: Newer models with CRDI technology provide superior emissions with cleaner burning capability, able to meet more stringent emissions laws.

Common Issues and Maintenance Issues Contributing

The 4D56 is a solid engine overall, but there have been some issues:

Cylinder Head Cracking: Cylinder head cracking can occur due to overheating, typically the result of excessive heavy engine load or cooling system failure.
Timing Belt Wear: There are two timing belts in the engine, camshaft and balance shaft. Missing this replacement at the indicated time (usually 80,000 km) can destroy the engine.
Oil Leaks: Oil seals and valve cover gasket are most prone to leakage. Timely check can prevent excessive oil loss.
Injector Problems: Clogged or dirty fuel injectors could result in idling being rough, running poorly, and emitting excessive emissions.
Turbocharger Degradation: Turbocharger deteriorates with age and results in low boost pressure and performance.

Tips for Maintenance:

Maintenance Oil Change: Premium quality diesel engine oil must be utilized and manufacturer change time observed.
Maintenance Cooling System: Adequate radiator, hoses, and thermostat maintenance should be preserved to prevent overheating.
Timing Belt Replacement: Replace timing belts on time as the manufacturer necessitates to safeguard your engine against total damage.
Fuel System Care: Use clean diesel fuel and contemplate frequent use of fuel system cleaners to keep injectors in excellent condition.

Conclusion

Mitsubishi 4d56 turbo engine is an engineering masterpiece that fulfills the standards of performance, reliability and efficiency in sync. Its widespread application in nearly all types of cars is a guarantee of its reliability and versatility. Even though it might have some set of general problems, if it is serviced well, then it can provide years of life, and hence it is a good choice for those who want to own a high-performance diesel engine.
