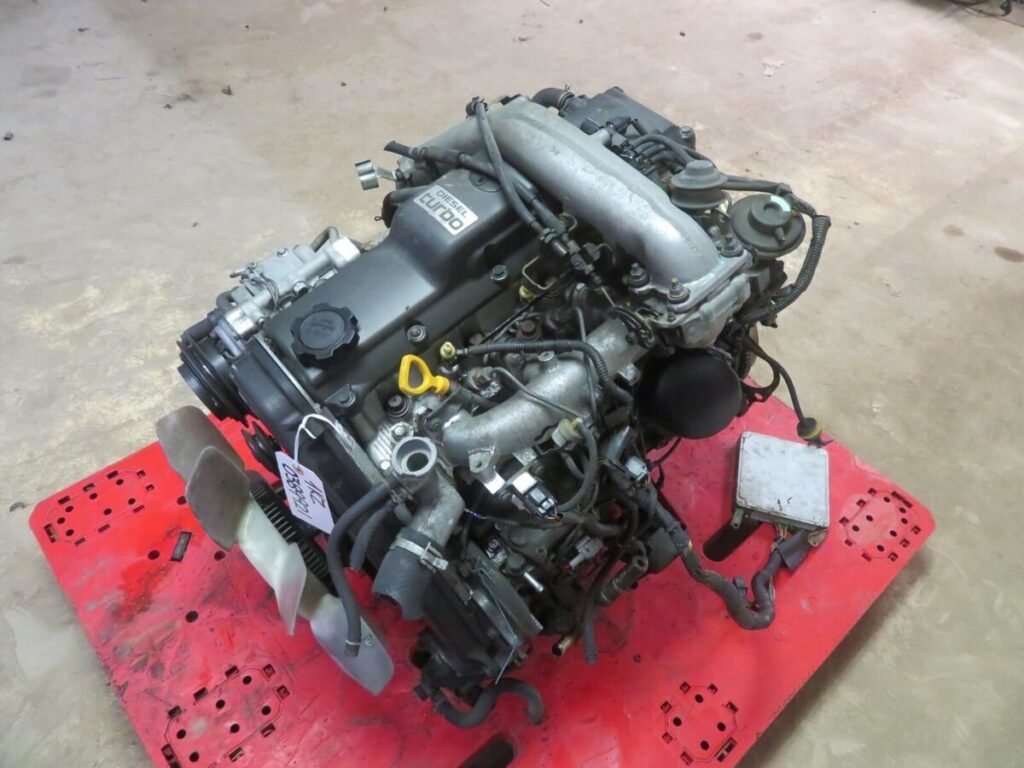

The Toyota 1KZ Engine: Power, Durability, and Versatility in One Package

Toyota’s 1KZ engine is a 3.0-liter turbocharged diesel inline-four engine that is known to be indestructible, powerful, and reliable. Toyota produced the engine between 1993 and 2006, and the engine is part of the highly acclaimed family of KZ engines and has been subjected to some of the toughest road conditions globally. With a reputation for burning all kinds of off-road and utility vehicles like the Toyota Land Cruiser Prado, Hiace, Hilux, and Surf, the 1KZ engine has been a long-time favorite among drivers who need a reliable diesel engine.

In this comprehensive review, we’ll go through the whole range of the 1KZ engine, from technical specifications to actual applications, performance, drawbacks and positives, and maintenance needs. Whether you’re doing a swap, an upgrade, or simply have an interest in one of Toyota’s most dependable diesel engines, then this post will have something for you.

1. Introduction to the Toyota 1KZ Engine

The 1KZ engine was designed to bridge the gap between the conventional mechanical diesel engines and the newer electronically controlled engines. The engine was designed to deliver more torque, better fuel economy, and lower emissions with higher reliability. Produced in two primary versions—1KZ-T and 1KZ-TE—the engine uses strong mechanical design with electronic improvement optional.

The 1KZ-T engine is fitted with a mechanical fuel injection system, while the more upscale 1KZ-TE is given an electronically controlled injection pump (EDC). Despite these differences, however, the two engines share a common 3.0L displacement, turbocharger setup, and overall design.

2. Toyota 1KZ Engine Specs in Detail

The first step to gaining an understanding of what makes the 1KZ engine so durable is to become acquainted with its specifications. Here are the details:

General Engine Specifications:

Specification

Engine Code; t1KZ-T / 1KZ-T
Configuration; Inline 4-cylinder, SOHC
Displacement; 2,982 cc (3.0 liters)
Bore x Stroke; 96.0 mm × 103.0 mm
Compression Ratio; 21.2:1
Turbocharger; Toyota CT12B
Injection Type; Indirect (mechanical or EDC)
Max Power; (1KZ-T) 123–125 hp @ 3,600 rpm
Max Power; (1KZ-TE) 130 hp @ 3,600 rpm
Torque Output; Up to 343 Nm @ 2,000 rpm
Fuel Type; Diesel

High torque and responsive power output make the 1KZ engine suitable for off-road applications and towing.

3. Major Features of the 1KZ Engine

a. Turbocharging Power

Toyota’s 1KZ engine is fitted with a CT12B turbocharger that functions to boost torque and overall horsepower. It provides sufficient extra push that is required for towing or off-road applications, giving drivers the power that they require, exactly when they require it.

b. Cast-Iron Strength

The block is made of cast iron, a component well known for its strength and resistance to warping under heat and pressure, the type needed in a diesel engine designed to carry heavy-duty.

c. Aluminum Alloy Pistons

The 1KZ engine utilizes aluminum alloy pistons for light weight and better heat performance. They are long-lasting and have low friction from the inside.

d. High Compression Ratio

A 21.2:1 compression ratio, 1KZ engine delivers peak fuel combustion efficiency, giving extra power and mileage—especially in severe use conditions.

4. Uses of the Toyota 1KZ Engine

The 1KZ engine has been fitted to a wide variety of Toyota models, making it one of the most used diesel engines in Toyota. Its performance, durability, and flexibility see it on both passenger and commercial vehicles.

Models Utilizing the 1KZ Engine:

Toyota Land Cruiser Prado (KZJ90, KZJ95)

A popular SUV among off-road drivers, the Prado made use of the 1KZ’s economy and high torque.

Toyota Hilux (KZN165, KZN130)

Reported to be a workhorse, the Hilux combined the ruggedness of a pickup with the reliability of the 1KZ diesel.

Toyota Hilux Surf (KZN185)

Essentially the SUV version of the Hilux, the Surf lives on the 1KZ’s reliability and performance.

Toyota Hiace (KZH100, KZH106)

Commercial vans like the Hiace rely on the 1KZ’s reliability to keep business going.

Toyota Granvia and Regius

These people movers utilized the 1KZ-TE to offer a combination of comfort and diesel power for transport businesses and big families.

5. Performance and Drive Quality

Day-to-day driving, the 1KZ engine delivers an even and smooth performance. Due to the turbocharger, drivers can anticipate minimal turbo lag and quick throttle response. The torque-rich delivery is most noticeable when load-hauling or ascending.

Though possibly less refined or economical to operate than more modern common-rail diesels, the 1KZ compensates with mechanical solidity and maintenance camaraderie.

6. Reliability and Durability

The 1KZ engine has a worldwide reputation for reliability. Various owners chalk up maintenance-free mileage over 250,000 miles due to constant maintenance. Its low-tech status, reduced amount of electronics (especially on the 1KZ-T variant), and the integrity of Toyota’s engineering all conspire to make it a durability champion.

Common Problems (and Solutions):

Cylinder Head Cracking: Resulting from overheating, typically due to a lack of maintenance of cooling systems. High-performance heads can be installed aftermarket for longevity.
Glow Plug Failure: Found on older engines but simple enough to change.
Turbo Wear: Some turbocharger issues can be encountered after a while, but turbo replacements or rebuilds can be undertaken.
Oil Leaks: Valve cover and front crank seals may leak over time, but are simple enough to fix.

7. 1KZ Engine Maintenance Tips

Maintain your Toyota 1KZ engine in pristine condition by adhering to these essential tips:

Oil Change: Change every 5,000–7,500 miles with a decent quality diesel engine oil.
Coolant Flush: Flush and replace coolant regularly to prevent overheating.
Timing Belt: Replace every 100,000 km or sooner to avoid engine catastrophic failure.
Turbo Check: Inspect from time to time for periodic oil leakage or boost loss.
Fuel Filter: Replace at regular intervals for maintaining the effectiveness of the injection.

8. 1KZ Engine Swaps and Tuning Potential

Due to its strength and abundance, the 1KZ engine is a common engine swap for older Toyotas and specialty off-road vehicles. Its relatively compact size and turbo capability make it continue to be a popular option for those upgrading from naturally aspirated diesels.

Tuning and Upgrades:

Intercooler Install: Lowers intake temps, raises horsepower.
ECU Remap (1KZ-TE): Enhances throttle response and power delivery.
Exhaust System Mods: Enhances airflow and provides small gains in performance.
Turbo Upgrade: Reflashing the OEM CT12B turbo can be used to release additional power.

9. Environmental Considerations

Although the 1KZ engine wasn’t developed with today’s tight emissions regulations in mind, it gets the job done for its era. Fitting an intercooler, EGR delete, or particulate filter is occasionally fitted in more restrictive territories, but this will affect legality in your area.

10. How It Compares to Other Toyota Diesel Engines

vs. 2L-TE:

The 1KZ-TE is smoother and has far more torque than the previous 2L-TE.

vs. 1KD-FTV (Common-Rail):

The 1KD is newer and more efficient-whirled, but the 1KZ is cheaper to maintain and simpler to fix, making it a viable choice for off-grid or rough use.

11. Is the Toyota 1KZ Engine Suitable for You?

If you require a robust, reliable, and durable diesel engine for towing, off-road, or just general daily driving duty—especially in a Toyota application—the 1KZ is an excellent choice. It’s highly respected globally and still widely available through resellers and salvage networks.

12. Final Thoughts: Why the 1KZ Engine Still Matters

The Toyota 1KZ engine is a diesel engine legend. It’s a reputation for being strong, functional, and easy to fix that has firmly placed it within car legend. Rebuilding a Hilux Surf, tuning a Prado, or even contemplating an engine transplant, the 1KZ offers a very appealing combination of power and reliability to deliver.

Its off-road dependability, decent after-sales support, and easy mechanics ensure that the 1KZ engine will continue to power adventurers, entrepreneurs, and DIY champion enthusiasts for generations to come.

Looking for a dependable 1KZ engine for sale? Talk to a reputable Toyota engine supplier about solutions best suited to your vehicle and budget.
